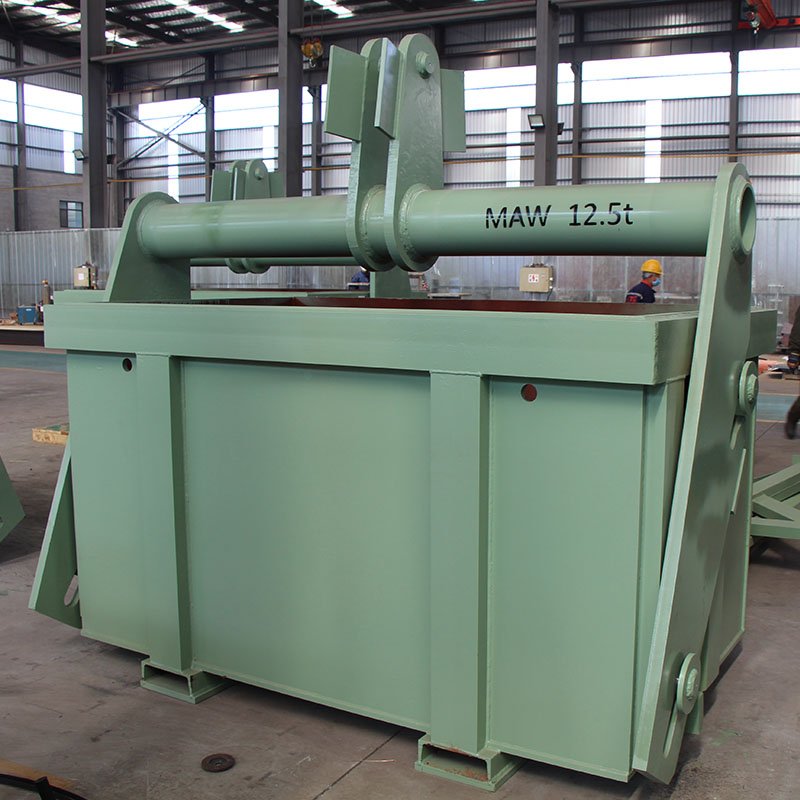

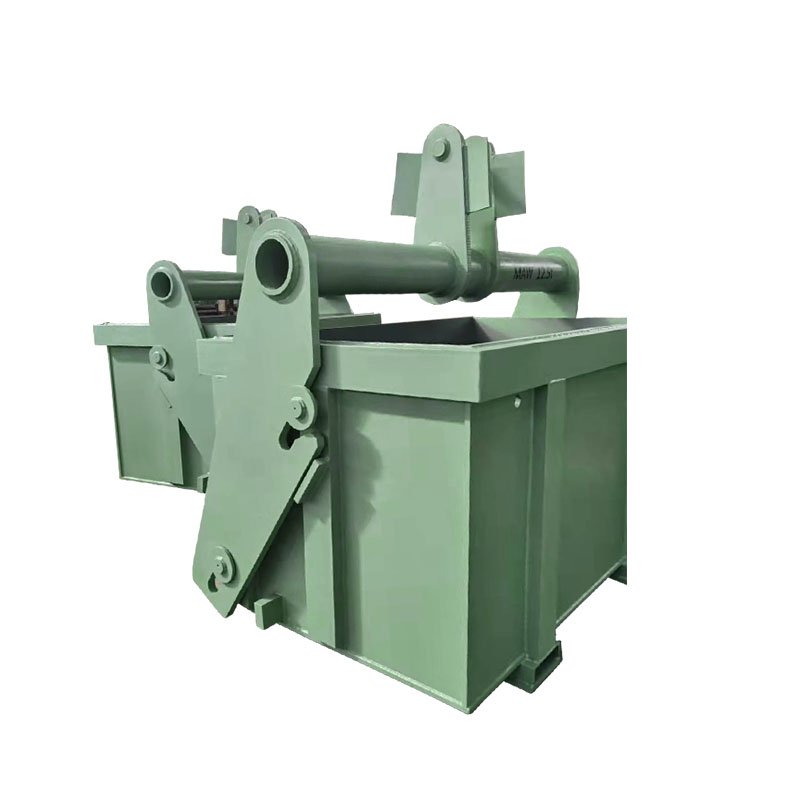

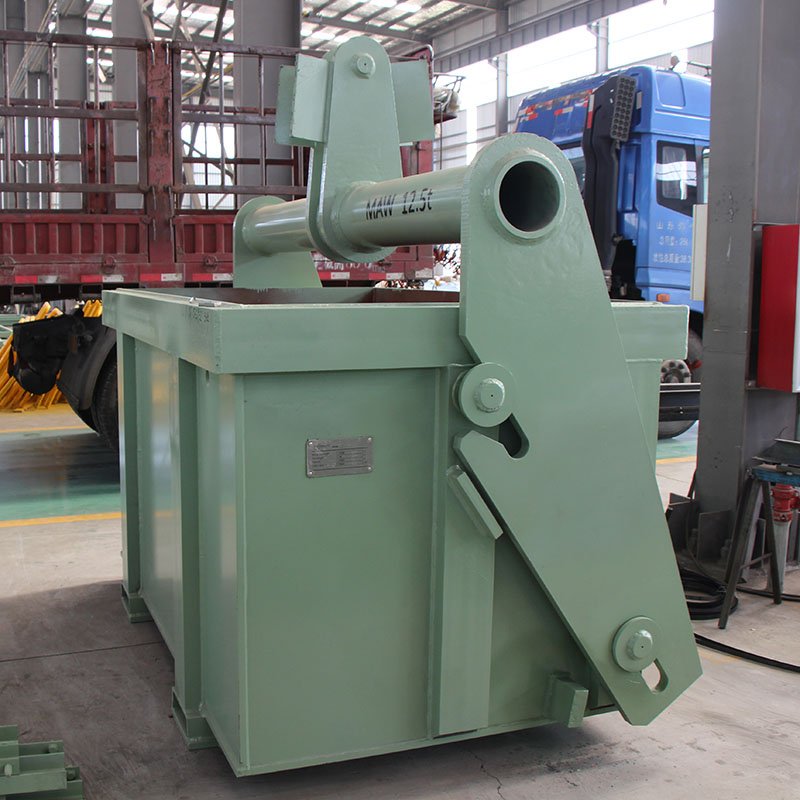

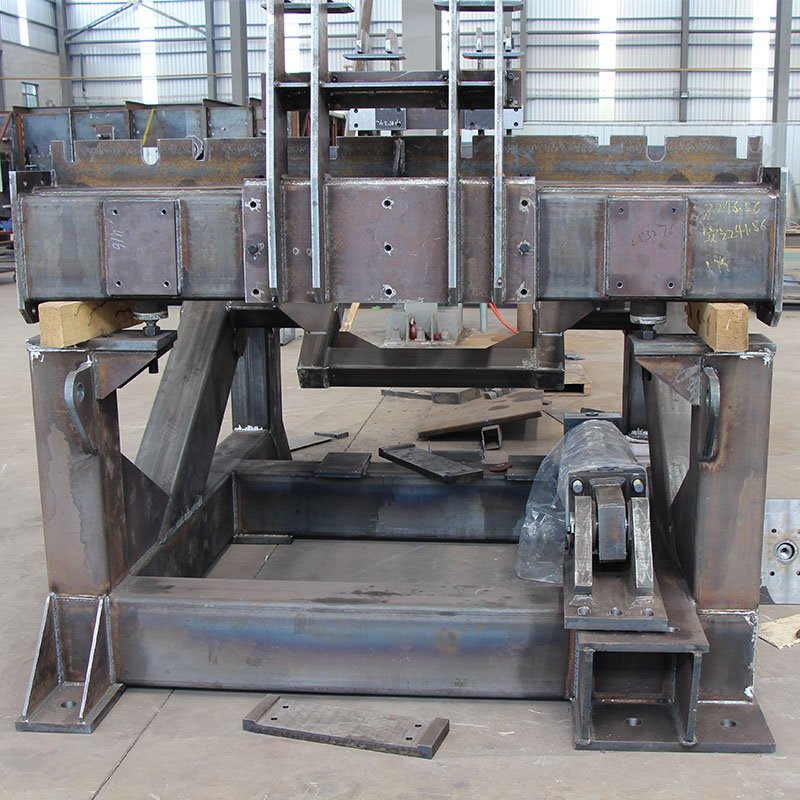

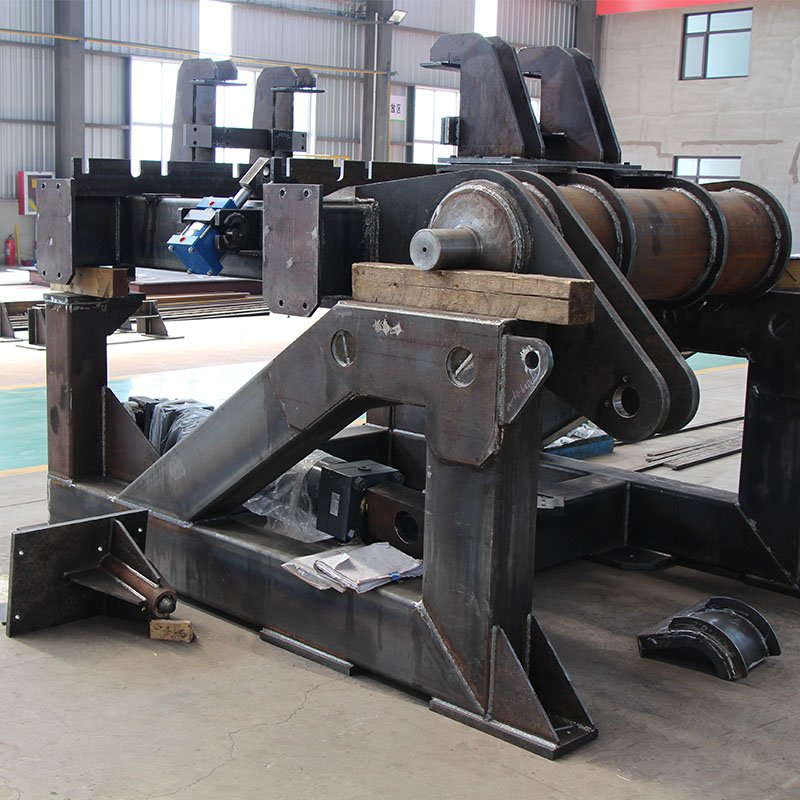

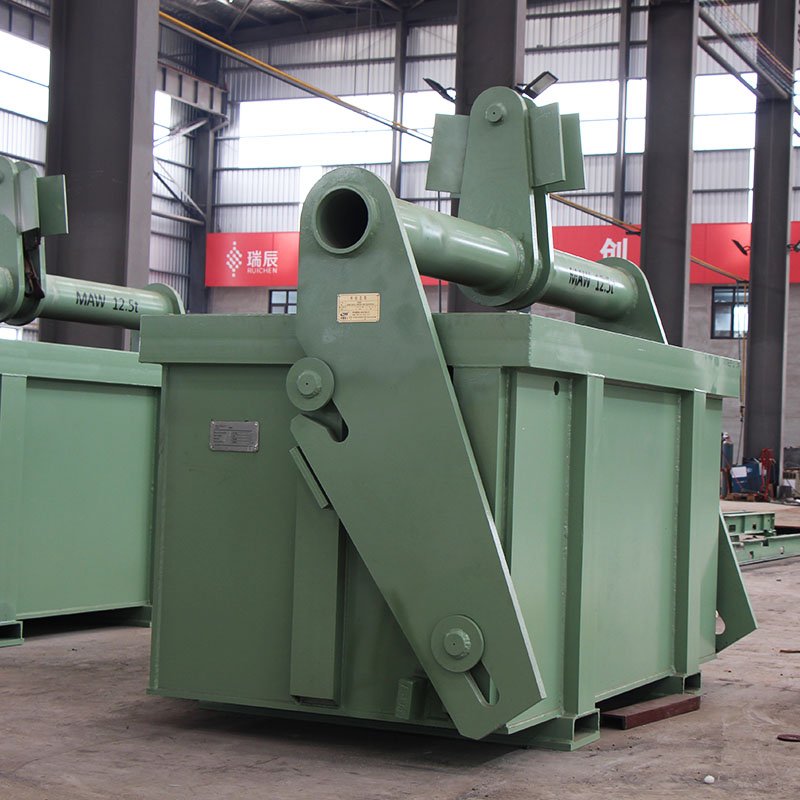

Flipping jig

The design of a Flipping Jig varies based on different applications, but typically includes key components such as:

Support Structure: Flipping Jigs are commonly constructed from robust metals like steel, cast iron, or aluminum to ensure sufficient strength and stability.

This design allows them to bear the weight of flipped objects while maintaining balance.

Clamping Device: Industrial Flipping Jigs are often equipped with adjustable fixtures or clamping systems to securely hold workpieces in place. The clamping

                            device can take the form of clamps,screws,or other adjustable mechanisms,accommodating various shapes and sizes of workpieces and pro

                            -viding stable clamping force to prevent sliding or movement during flipping.

Flipping Mechanism: Flipping Jigs can feature different flipping mechanisms to achieve various flipping methods. For instance, some may rely on manual oper

                           -ation or leverage principles, while others may be equipped with electric, pneumatic, or hydraulic systems for automatic flipping.

Industrial Flipping Jigs not only excel in flipping operations but also serve versatile roles in different processes and applications. For instance, they can integrate

                          with other equipment or machinery for tasks such as assembly, inspection, cleaning, coating, and more.

In summary, Flipping Jigs, as crucial industrial equipment, boast features and advantages such as sturdy structure, high load-bearing capacity, easy operation, wide

applicability, safety, reliability, flexibility, and easy maintenance. In industrial production, the application of Flipping Jigs significantly enhances production efficiency

and product quality, providing robust support for the development of the manufacturing industry.
